Survey Control Networks

Establishing the single version of truth that keeps every survey, setting out task and contractor on the same control grid.

What are Survey Control Networks?

A survey control network is the framework of permanent or semi-permanent reference points that every other site engineering task is tied back to.

Each control point has known coordinates and levels, allowing all setting out, as-built work, monitoring and machine control to use the same grid and datum. This is the project’s single version of truth.

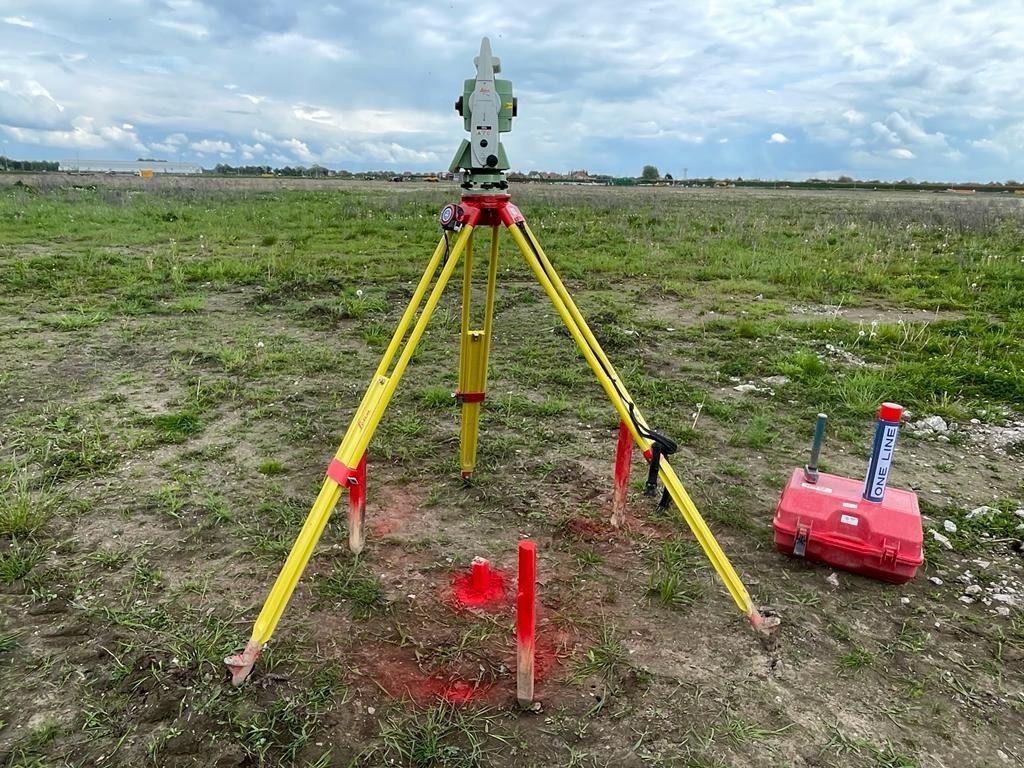

Good control is set early, checked properly and protected from disturbance. On larger or longer-running sites, that usually means primary control outside the active works and secondary control around the live construction area so instruments can be set up quickly and accurately. Without this foundation, different contractors can end up working to different grids – which is when mistakes become expensive.

Applications

Establishing site grids, benchmarks and traverse stations
Tying survey, CAD, BIM and field data into one coordinate system
Supporting repeatable setting out over weeks, months or years
Re-establishing lost or disturbed control after earthworks or civils activity
Creating internal datums for logistics, steel, plant or fit-out interfaces

Benefits

Keeps all contractors working from the same coordinates and levels
Speeds up instrument setup and repeat visits
Improves consistency across setting out, QA and handover surveys
Reduces coordination errors between design revisions and field work
Creates auditable control records for quality management

Deliverables

Primary and secondary control installation
Coordinate and level schedules for all control stations
Control network plan and site sketch
Traverse, adjustment and check records
Benchmark register and re-establishment notes
Optional local grid / site calibration information where needed

Why Choose Powers?

We understand that good control is the bedrock of every reliable survey. Our history in engineering surveying highlights the value of a solid control network, and current project work still starts with a solid control network.

We can establish robust perimeter control, create practical secondary stations for daily site use, and keep all later setting out, volumetrics, monitoring and as-built work tied to the same dependable reference framework.

Our Services

Topographic Land Surveys

Measured Building Surveys

Underground Utility Detection Surveys

Site Engineering

Boundary Surveys

Geospatial Consulting & Support

Site Engineering Surveys in Action

Our site engineering surveys support confident decisions across a wide range of projects. Explore how Powers’ data has helped clients move from uncertainty to clarity.
