Type B Verification - GPR / EML Surveys
Utility constraints defined, not assumed - reduce exposure to strikes, delays and rework.
What is a Type B GPR / EML Survey?

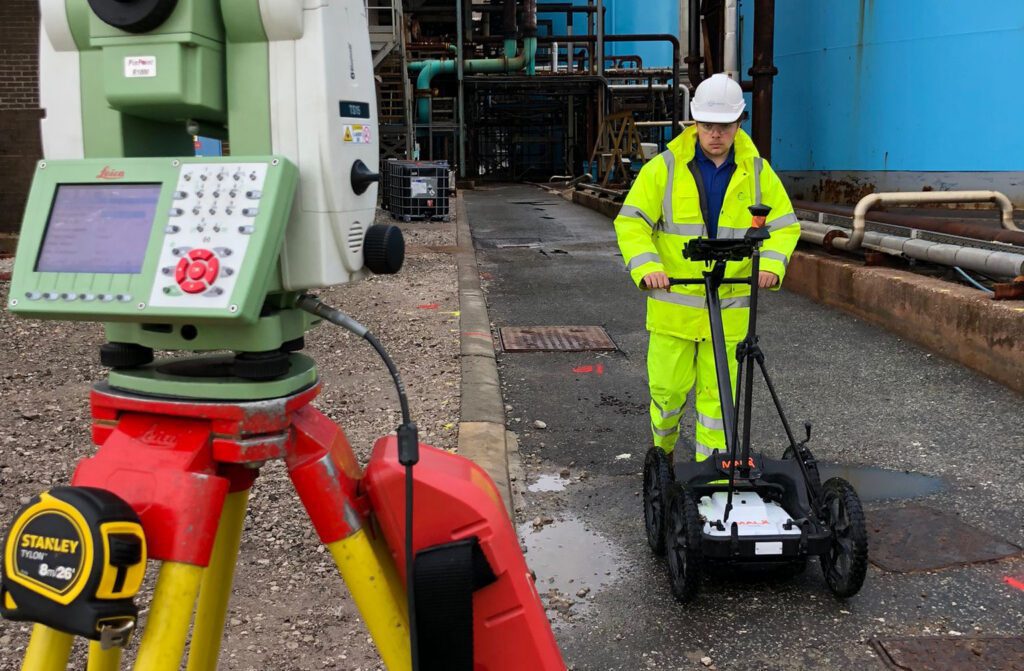

A PAS 128 Type B survey uses geophysical techniques such as Ground Penetrating Radar (GPR) and electromagnetic location (EML) detection to accurately locate underground utilities without excavation.
These surveys detect buried services by scanning the ground in a grid-like pattern and interpreting the returned signals. GPR is particularly useful where multiple utilities exist or where plastic pipes cannot be detected using electromagnetic equipment alone.

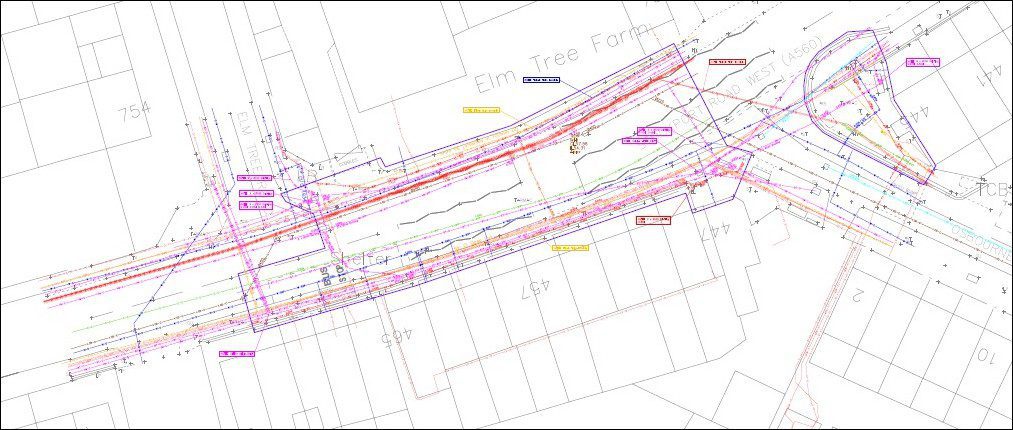

If you require a topographic survey of the site at the same time, we can place underground services directly onto it, ensuring all measurements share the same control grid.
Once a Type B survey has been completed and used for design purposes, the precise position of any underground service must always be physically verified before ground, engineering or construction works begin.
Applications
Establish underground constraints for detailed construction design.
Enable construction layouts around existing buried services
Reduce redesign during construction due to unknown utilities
Identify service clashes with proposed construction works
Enable redesign before construction begins
Manage construction risk in congested utility environments
Inform safe excavation practices on construction sites
Support selection of appropriate excavation methods
Define locations for trial pits during construction
Minimise unnecessary intrusive works on site
Validate existing utility data before construction starts
Reduce reliance on inaccurate utility records
Benefits
- Provides non-intrusive detection of buried services
- Identifies multiple utility types
- Improves safety before excavation
- Supports accurate design decisions
Deliverables
- Utility detection drawings
- PAS 128 quality level outputs
- Geo-referenced CAD plans
- Survey report and interpreted GPR results
Why Choose Powers?
We combine advanced GPR technology with experienced surveyors who interpret results to PAS 128 standards. Our PUMA accreditation demonstrates that our processes follow recognised industry best practice.
